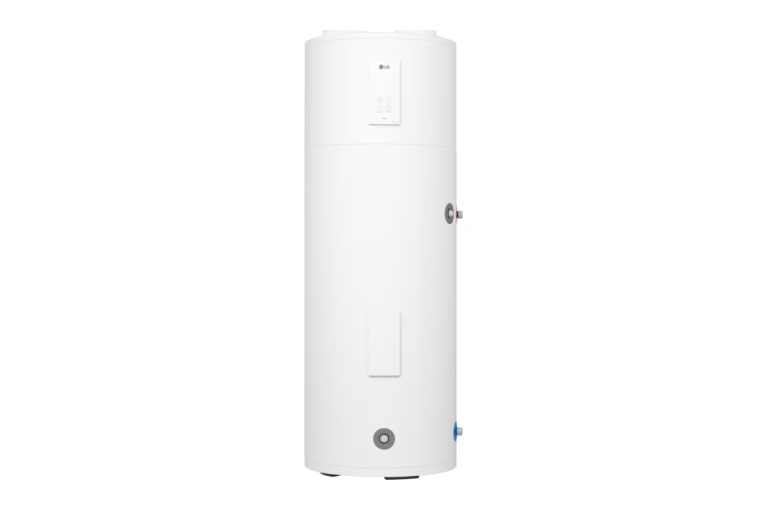

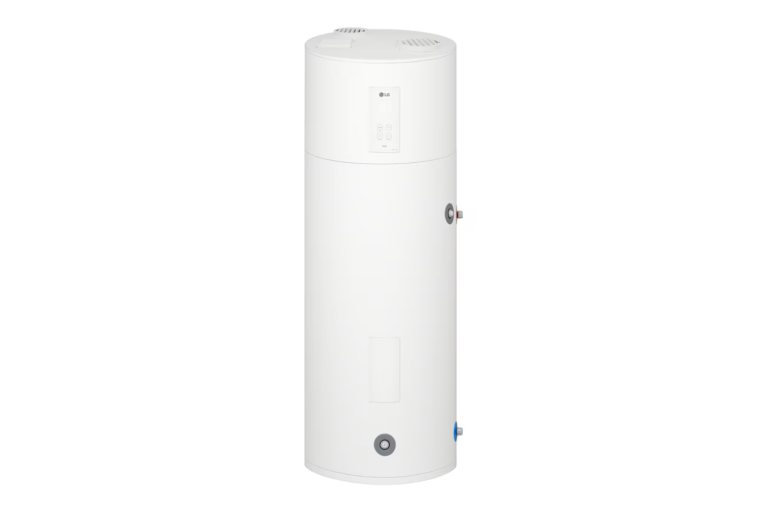

WH20ESF0 - Термопомпен бойлер
1885,20€ / 3687,13 лв.
Термопомпен бойлер 200 ℓ
5 години гаранция
ПРОИЗВЕДЕНИ В НОРВЕГИЯ
Описание
-
ПРОИЗВЕДЕНИ В НОРВЕГИЯ.
- Хладилен агент R290.
- Ниски нива на шум.
- Максимална температура на водата до 75°C.
- Четири режима на работа.
- Стилен дизайн.
- 200 литров бойлер.
- LG ThinQ – WiFi.
Технически характеристики
| Model Name | Unit | WH20ESF0.CA | |
| Capacity | Volume(Nominal) | L | 200 |
| COP(7℃)_COP | - | 3.20 (A+) | |
| COP(7℃)_Daily electrical energy consumption | kWh | 3,652 | |
| COP(7℃)_V40 | L | 245 | |
| Load Profile | - | Large | |
| Annual Energy Consumption(AEC) (15℃ / 7℃) | kWh | 770 (15℃） | |
| Power Input | Upper Element (230V) | W | 2 000 |
| Lower Element (230V) | W | - | |
| Heat Pump | W | 580 | |
| Max. | W | 2 580 | |
| Annual Energy Consumption(AEC) (15℃ / 7℃) | - | 770 (15℃) | |
| Power Supply | Ø, V, Hz | 1, 230, 50 | |
| Available Voltage Range | V | 195 ~ 265 | |
| Air Flow Rate | High/Low | CMM | 4,5 |
| Fan Speed | High/Low | RPM | 1 400 |
| Sound Pressure Level | Auto | dB(A) | 38,0 |
| Turbo/Heat Pump | dB(A) | 38,0 | |
| Sound Power Level | Outdoor / Indoor | dB(A) | - / 53.0 |

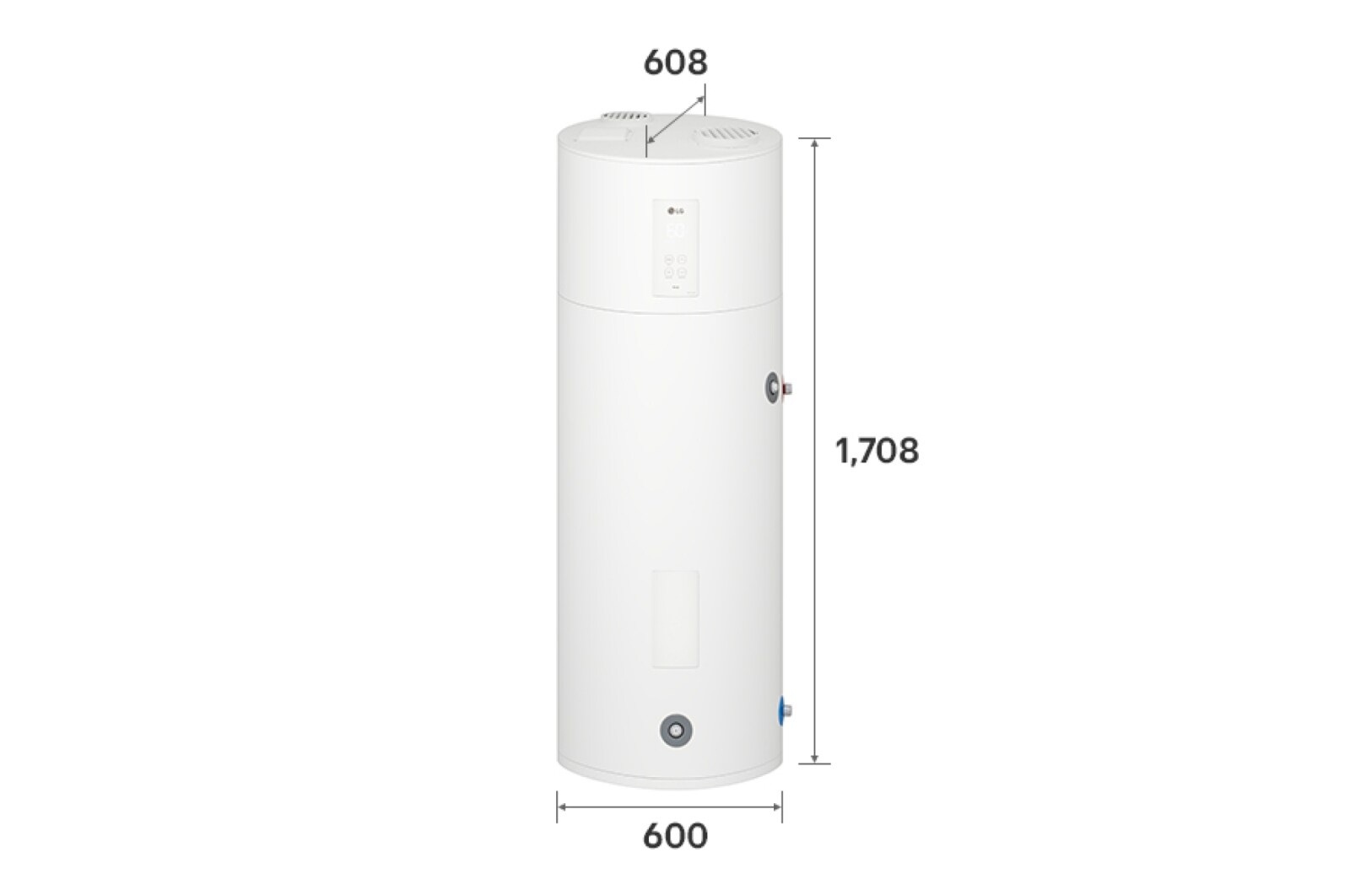

| Dimensions | Net(W x H x D) | mm | 600 × 1,708 × 608 |
| Shipping(W x H x D) | mm | 660 × 1,894 × 660 | |
| Weight | Net | kg | 92 |
| Shipping | kg | 115 | |
| Operation Range | Heating | °C DB | -7 ~ 43 |
| Exterior Color (Code) | - | Essence white (RAL 9003) | |
| Compressor | Type | - | Constant speed rotary |
| Model | - | WHP01750PSV-H3BUA | |
| Motor Type | - | PSC | |
| Locked Rotor Ampere(LRA) | A | 12 (240V/50Hz) | |
| Oil Type | - | PAG or equivalent | |
| Oil Charge | cc | 150 ± 20 | |
| Manufacturer / Country of Origin | - | Highly / China | |
| Fan | Type | - | Centrifugal fan |
| Motor Type | - | BLDC | |
| Motor Output | W | 30 | |
| Heat Exchanger | Quantity | EA | 1 |
| Rows x Columns x FPI | - | 3 x 16 x 16 | |
| Design Pressure(System) | High Side | kPa | 3 000 |
| Low Side | kPa | 1 500 | |
| Max Working Pressure(Water Tank) | kPa | 1 000 | |
| Recommended circuit breaker (ELCB) | Heat Pump & Heater | A | 16 |
| Wiring Connections | Power Supply Cable(included Earth) | mm² × cores | 2.5 x 3C |
| Drain Hose Size | I.D | mm | 19 |
Атрибути
| Марка | LG |
|---|---|
| Брой фази | 1 |
