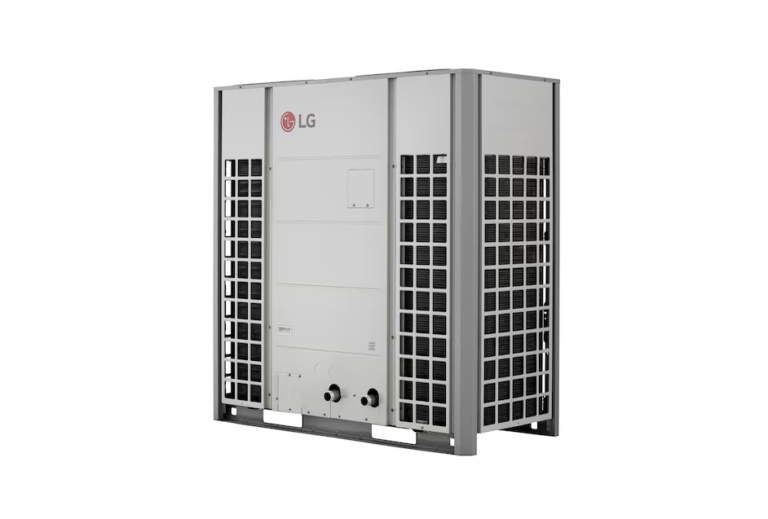

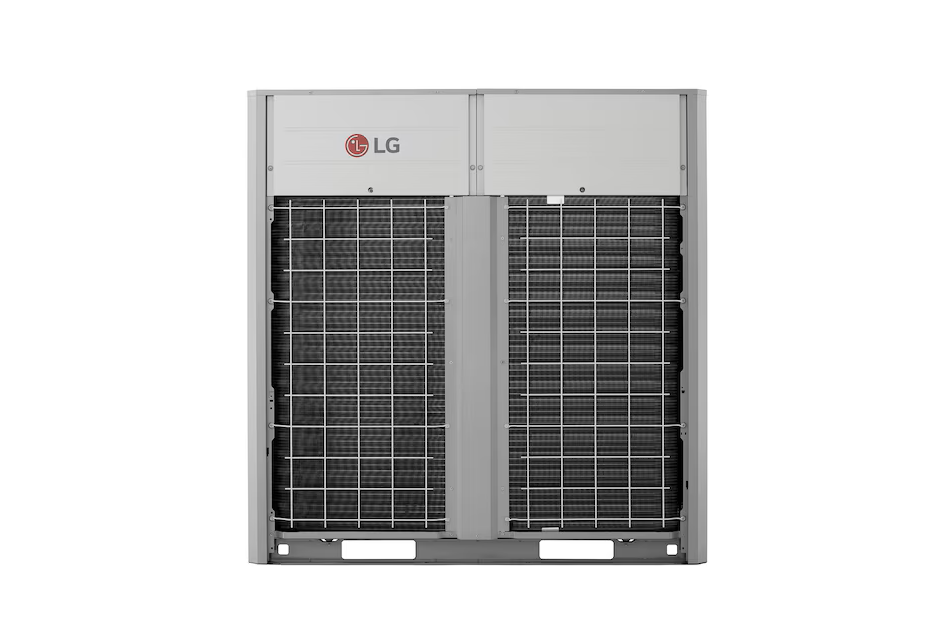

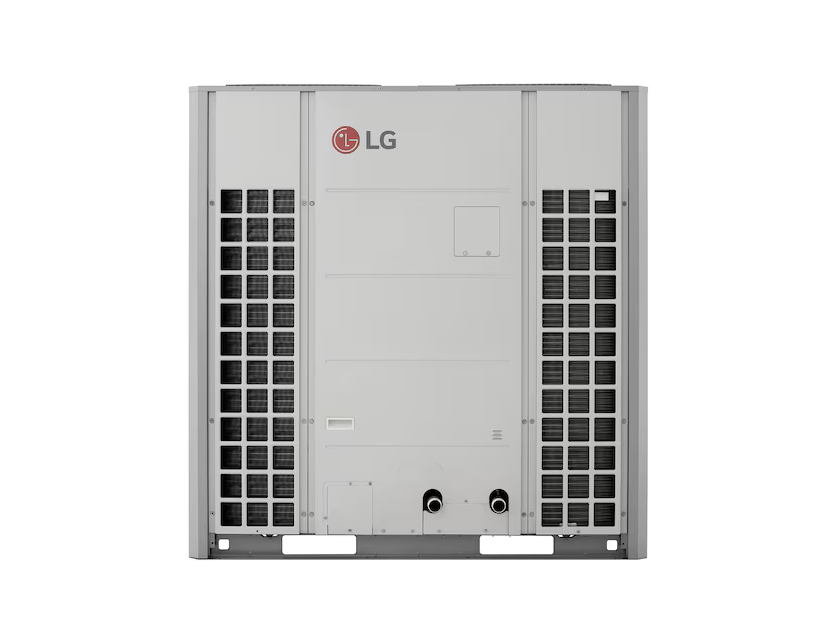

HM513MR.UXC0 - Monobloc G
20418,00€ / 39934,14 лв.
5 години пълна гаранция
Режим охл. : 5°С/48°С
Режим отопл. : -25°С/35°С
A++ ~ A++
Описание
- Машина на фреон R32
- Температура на изходяща вода до 60°C
- Компактен размер и леко тяло
- Минимална работна температура на водата: 5°C
- Максимална работна температура на въздуха (на открито): 48°C
- Минимална работна температура на въздуха (на открито): -25°C
- Отлична работа при ниска външна температура (100% при -10°С).
Машината няма вградена циркулационна помпа и разширителен съд.
ВАЖНО! В ЦЕНАТА Е ВКЛЮЧЕН КОНТРОЛ БОКС!
Повече информация относно габарити, начин на работа и параметри можете да намерите в прикачените файлове.
Технически характеристики
| Performance specifications | HM513MR | |||||||
| - | - | Outdoor temp. (°CDB) |
Leaving water temp. (°C) |
- | ||||
| Capacity | Heating | 7 | 35 | kW | 51,0 | |||
| 45 | kW | 51,0 | ||||||
| 55 | kW | 51,0 | ||||||
| 2 | 35 | kW | 51,0 | |||||
| -7 | 35 | kW | 51,0 | |||||
| 55 | kW | 40,0 | ||||||
| -15 | 35 | kW | 46,4 | |||||
| Cooling | 35 | 18 | kW | 51,0 | ||||
| 7 | kW | 51,0 | ||||||
| Power input | Heating | 7 | 35 | kW | 11,86 | |||
| 45 | kW | 14,60 | ||||||
| 55 | kW | 17,70 | ||||||
| 2 | 35 | kW | 15,00 | |||||
| -7 | 35 | kW | 20,40 | |||||
| 55 | kW | 24,00 | ||||||
| -15 | 35 | kW | 20,90 | |||||
| Cooling | 35 | 18 | kW | 11,33 | ||||
| 7 | kW | 16,45 | ||||||
| COP | Heating | 7 | 35 | W/W | 4,30 | |||
| 45 | W/W | 3,50 | ||||||
| 55 | W/W | 2,88 | ||||||
| 2 | 35 | W/W | 3,40 | |||||
| -7 | 35 | W/W | 2,50 | |||||
| 55 | W/W | 1,67 | ||||||
| EER | Cooling | 35 / 24 | 18 | W/W | 4,50 | |||
| 7 | W/W | 3,10 | ||||||
| SEER | 18 | W/W | 7,30 | |||||
| 7 | W/W | 5,00 | ||||||
| Seasonal space heating eff. class | 35 | - | A++ | |||||
| 55 | - | A++ | ||||||
| Seasonal space heating efficiency (ηS) | 35 | - | 167 | |||||
| 55 | - | 125 | ||||||
| SCOP(average climate) | 35 | W/W | 4,26 | |||||
| 55 | W/W | 3,21 | ||||||
| Water flow rate | Rated(at ΔT 5℃) | ℓ /min | 146 | |||||
| Minimum Flow Rate | Flow switch trigger point | ℓ /min | 100 | |||||
| Operation range (outdoor temperature) |
Cooling | Min.~Max. | °C(DB) | 10 ~ 48 | ||||
| Heating | Min.~Max. | °C(DB) | -25 ~ 35 | |||||
| Operation range (Leaving Water) | Cooling | Min.~Max. | °C(DB) | 5 ~ 27 | ||||
| Heating | Min.~Max. | °C(DB) | 25 ~ 60(65*) | |||||
| Domestic Hot water |
Min.~Max. | °C(DB) | 25 ~ 55(80*) | |||||
| Electrical specifications | HM513MR | |||||||
| Power supply | Case 1 | V, Ø, Hz | 380-415, 3, 50 | |||||
| Limit range of voltage | V | 342~456 | ||||||
| Running current | Heating(Rated) | A | 17,3 | |||||
| Cooling(Rated) | A | 24,0 | ||||||
| Peak control running current |
Heating | A | 21 - 42 (50% - 100%) | |||||
| Cooling | A | 21 - 42 (50% - 100%) | ||||||
| Recommended circuit breaker(ELCB) | A | 50 | ||||||
| Standby power consumption | W | 20 | ||||||
| Connecting cable | Power supply cable (included Earth, H07RN-F) |
mm² x cores |
10.0 x 5C | |||||
| Communication cable (H07RN-F) |
mm² x cores |
1.0 - 1.5 x 2C | ||||||
| Technical specifications | HM513MR | |||||||
| Compressor | Type | - | Hermetically Sealed Scroll | |||||
| Model x No. | - | JQC096MAE x 1 | ||||||
| Piston displacement | cm³/rev | 87,6 | ||||||
| Motor type | - | BLDC | ||||||
| Refrigerant | Type | - | R32 | |||||
| Precharged amount | kg | 10 | ||||||
| GWP | - | 675 | ||||||
| t-CO2 eq. | - | 6,75 | ||||||
| Control type | - | Electronic expansion valve | ||||||
| Technical specifications | HM513MR | |||
| Refrigerant oil | Type | - | FW68D | |
| Charged volume | cc x No. | 1 500 | ||
| Fan | Type | - | Propeller | |
| Air flow rate (rated) | ㎥/min | 430,0 | ||
| Fan motor | Type | - | BLDC | |
| Output | W x No. | 1,500 x 2 | ||
| Heat exchanger | Rows x columns x FPI | - | 3 x 58 x 17 | |
| No. | EA | 2 | ||
| Fin type | - | Wide Louver Plus | ||
| Heat exchanger (refrigerant to water) | Type | - | Brazed plate HEX | |
| No. | - | 1 | ||
| Number of plate | EA | 104 | ||
| Water volume | ℓ | 5,6 | ||
| Sound pressure level | Heating(Rated, @10m) | dB(A) | 54 | |
| Cooling(Rated, @10m) | dB(A) | 58 | ||
| Sound power level | Heating | Low noise | dB(A) | 75 |
| Rated | dB(A) | 82 | ||
| Daytime max. | dB(A) | 89 | ||
| Cooling | Rated | dB(A) | 86 | |
| Water connecting pipes |
Inlet | inch | Male PT 1-1/2" according to ISO 7-1 (tapered pipe threads) | |
| Outlet | inch | Male PT 1-1/2" according to ISO 7-1 (tapered pipe threads) | ||
| Dimensions | Net(W x H x D) | mm | 1,640 x 1,690 x 825 | |
| Shipping(W x H x D) | mm | 1,670 x 1,820 x 860 | ||
| Weight | Net | kg | 335,0 | |
| Shipping | kg | 353,0 | ||
| Exterior | Color of chassis | - | Morning Gray / Dawn Gray | |
| RAL Code of chassis | - | RAL 7038 / RAL 7037 | ||

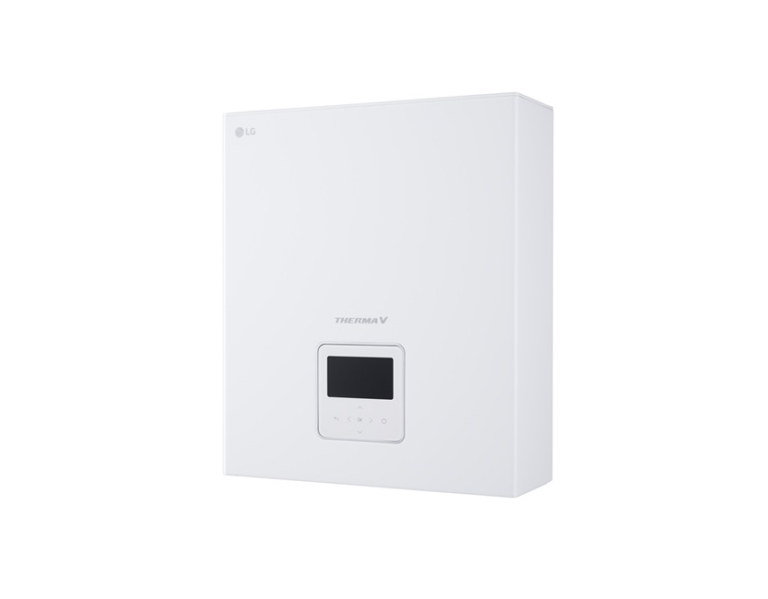

| Unit | PHCSL0 | ||
| Major | Minor | ||
| Classification | Chassis | - | Accessory |
| Operation range(Leaving Water) | Cooling (min. ~ max.) | ℃(DB) | 5 ~ 27 |
| Heating (min. ~ max.) | ℃(DB) | 25 ~ 60(65*) | |
| Domestic hot water (min. ~ max.) | ℃(DB) | 25 ~ 55(80*) | |
| Power supply | Case 1 | V, Φ, Hz | 220-240, 1, 50 |
| Current | Current (max.) | A | 0,6 |
| Recommended circuit breaker(ELCB) |
- | A | 10 |
| Connecting cable | Power supply cable (H07RN-F) | mm² × cores | 0.75 x 3C |
| Communication cable (H07RN-F) | mm² × cores | 1.0 - 1.5 x 2C | |
| Dimensions | Net (W x H x D) | mm | 420 x 490 x 141 |
| Shipping (W x H x D) | mm | 466 x 580 x 184 | |
| Weight | Net | kg | 6,8 |
| Shipping | kg | 9,2 | |
| Exterior | Color of chassis | - | Essence White |
| RAL Code of chassis | - | RAL 9003 | |
Атрибути
| Марка | LG |
|---|---|
| Капацитет | 51 |
| Брой фази | 3 |
| Тип хладилен агент | r32 |
| Мощност охлаждане | 51 |
| Мощност отопление | 51 |
| SEER | 4.5 |
| SCOP | 4.3 |
| Външно тяло / Машина | С контрол бокс |
